Mercedes-Benz Actros 3363 6x4 GigaSpace
Scale: 1:14
A Customized 3-Axle Beauty!
The 2012 Truck of the Year award-winning Actros series is the flagship of the worlds leading truck manufacturer, Daimler AG (Germany).

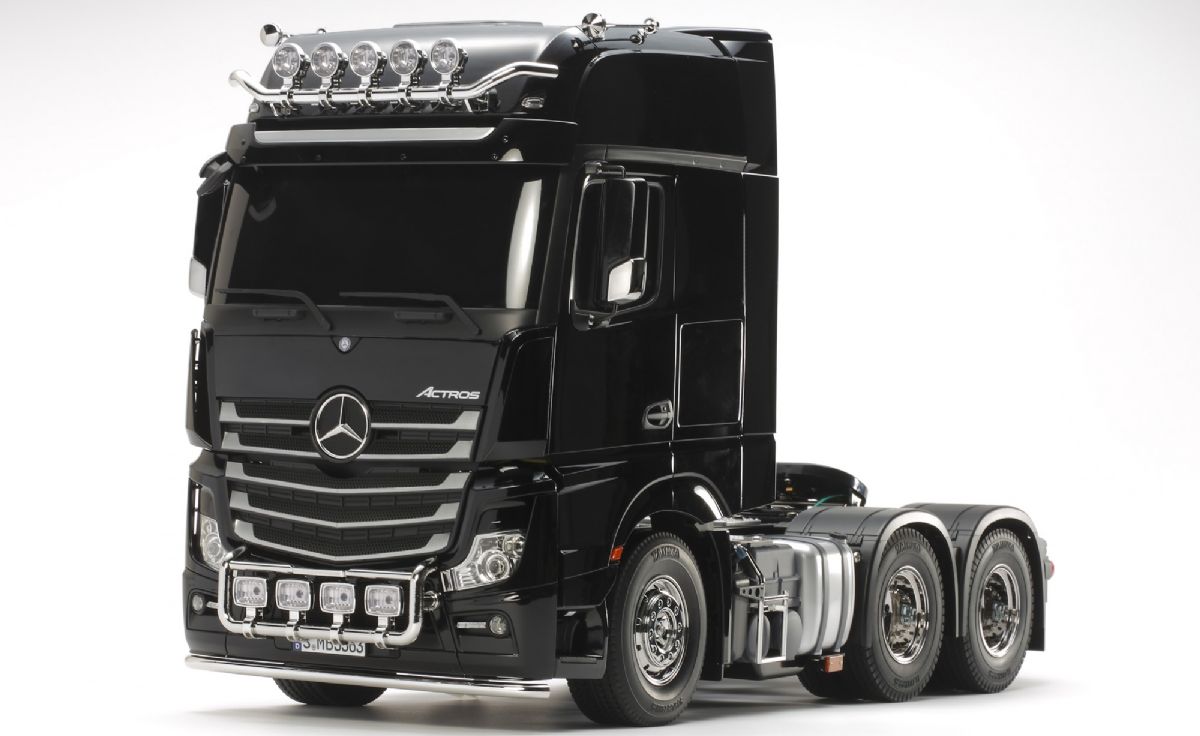

This R/C model assembly kit recreates the dual rear axle-driven Actros 3363 6x4 GigaSpace model, which runs on a 15.6-liter turbocharged inline-6 engine capable of 630hp. The models highly detailed body breathtakingly captures the powerful form of the truck, including depictions of auxiliary lights on cab roof and bumper.
Its ladder frame chassis features aluminum side channels with resin cross members while the suspension employs leaf springs and friction dampers. An assembly type 3-speed transmission allows gear changes via separately available 4-channel transmitter.
Realistic Lights Sounds and Vibration
Tamiya Multi-Function Control Units (Not included) offer light sound and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds give you the feeling that you are driving the real thing! Headlights brake lights fog lamp, hazard lights and turn signal operations are also at your fingertips.
Specifications
Length: 538mm, Width: 195mm, Height: 305mm, Weight (without optional parts): Approx. 3.9kg
Wheelbase: 237+103mm
Tread: 155mm (Front), 138mm (Rear, Double Tire)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle (Front/Rear): 0°/0°
Camber Angle (Front/Rear): 0°
Toe Angle: 0°(Front & Rear)
Dampers: Aluminum Dummy Dampers (Front & Rear)
Drivetrain: Rear Double Axle Drive
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel diff
Motor: Type 540
Tire Width/Diameter: 30mm/85mm (Front), 22mm/83mm (Rear)
