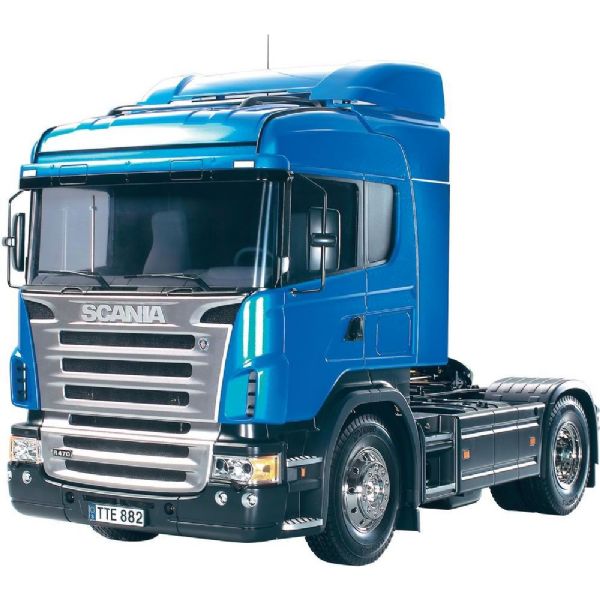

Scania R470 Highline
Scale: 1:14
Exciting Trucking Action
Tamiya proudly presents the R470 Highline, one of the trucks belonging to Swedish manufacturer Scanias International Truck of the Year 2005 award-winning R Series.
Body features replica-quality realism and the chassis features numerous metal parts for the frame and suspension for an added sense of volume. Assembly of the 3-speed transmission is effortless and when used with a 4-channel transmitter, it will give fans full control of realistic gear shift operations. Beautifully reproduced cabin tilts forward separately from the fenders just like the actual truck.
The interior and exterior of the fenders themselves have also been accurately modelled for the most realistic look possible. Kit-included coupler enables linkage with any of Tamiyas currently available 1/14 scale trailers and the R470 is compatible with a wide range of Tractor Truck Option Parts as well.
Specifications
Length: 452mm, Width: 187mm, Height: 293mm, Weight (without options): Approx. 3.2kg
Wheelbase: 272mm
Tread: 156mm (Front), 138mm (Rear)
Chassis: Aluminum & Polycarbonate Resin Ladder Frame
Suspension: Front/Rear Leaf Springs
Caster Angle: 0°/0°(Front/Rear)
Camber Angle: 0°(Front & Rear)
Toe Angle: 0°(Front & Rear)
Dampers: Aluminum Dummy Dampers (Front & Rear)
Drivetrain: Rear Wheel Drive
Transmission: 3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: (1st Gear) 32.49:1, (2nd Gear) 17.76:1, (3rd Gear) 10.66:1
Diff. Gear: 3-bevel diff
Motor: Type RS540
Tire Width: 22mm (Front & Rear)
Tire Diameter: 83mm (Front & Rear)
