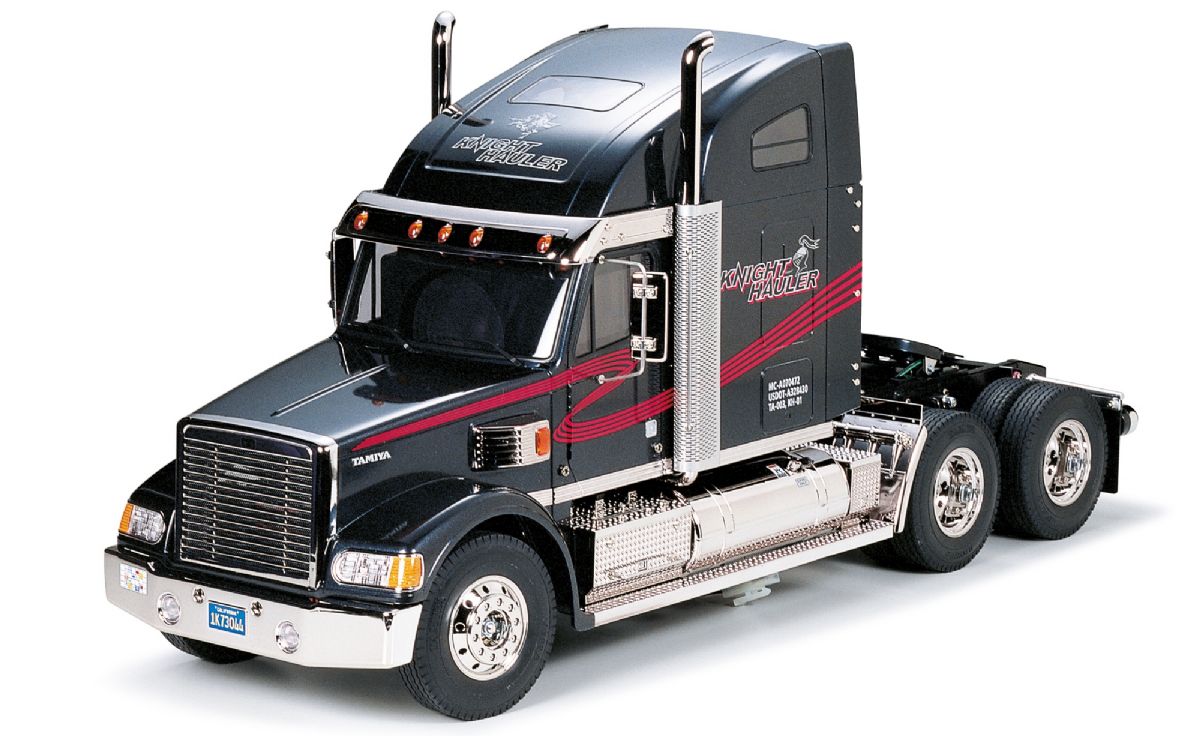

R/C Knight Hauler
Scale: 1:14
This 1/14 scale R/C Tractor Trucks features an originally designed truck body. Hood, large roof spoiler, interior, and lights have been artistically rendered in exquisite detail. Grill, tank, exhaust and steps have been beautifully rendered with metal plated parts.
Marvel as the 630mm long truck roars down the road powered by its 3-step transmission. Combined use with Tamiyas Multi Function Control Unit (sold separately) makes driving this R/C truck an audiovisual treat, featuring various sound effects recorded from an actual semi truck as well as working headlights fog lamps and roof lamps.
Specifications
Length: 630mm
Width: 186mm
Ground Clearance: 19mm
Weight Fully-Equipped: about 3.1kg (without multi function unit)
Wheelbase: 476mm
Tread: 156/138mm (Front/Rear)
Chassis Material: Aluminum and polycarbonate plastic ladder frame

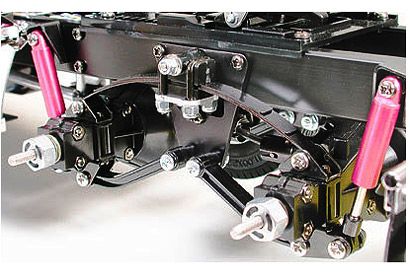

Suspension: Rigid Axle w/Metal Leaf Springs
Caster Angle: 0 degrees
Camber Angle: 0 degrees
Toe Angle: 0 degrees
Aluminum Dummy Dampers
Drive train: 2-axle
3-gear transmission (gear shifting operated via transmitter)
Gear Ratio: 1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1
Diff. gear system: Bevel Gear Diff
Motor: RS540 (standard in the kit)
Tire Width: 22mm
Tire Diameter: 88mm
