lagerSC-0251MG Servo 16Kg 0,18, Hitec

Artikelnr SC-0251MG

SC-0251MG Servo 16Kg 0,18

385 kr

Frakt
Standard frakt  (29 kr inom Sverige)

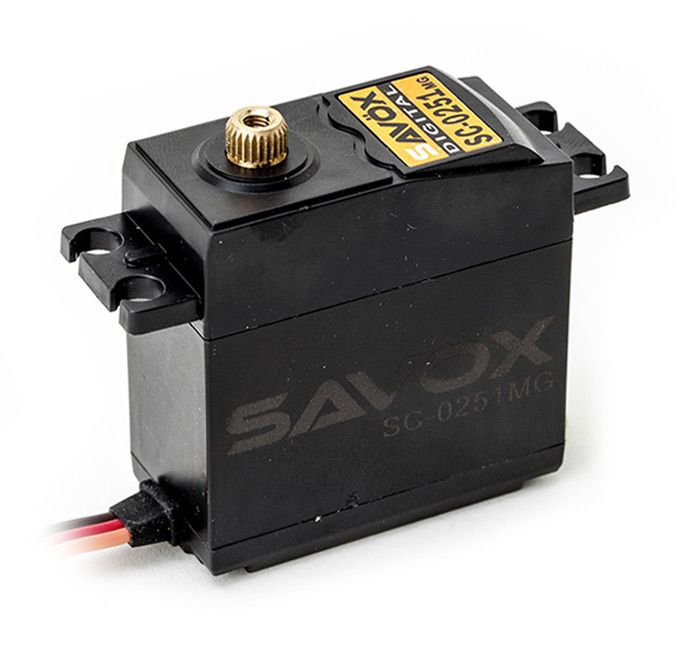

SAVÖX SC-0251MG - Metal-Geared Digital Servo
The Savox SC-0251MG is a high torque metal-geared digital servo which is suitable for many applications.

Features:

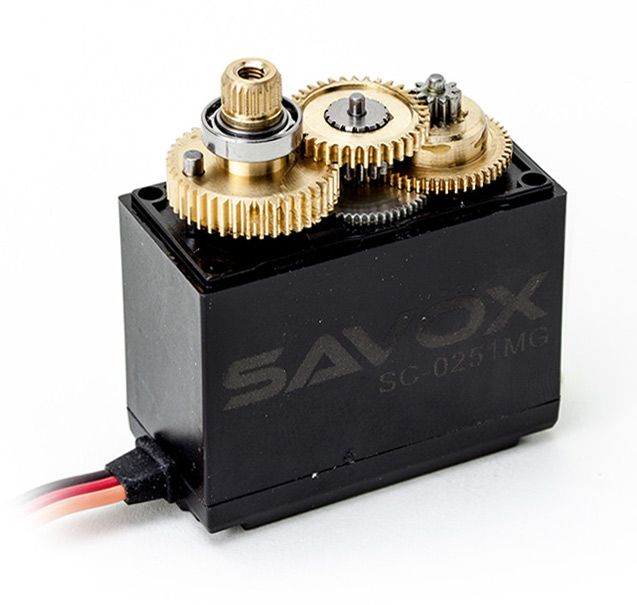

Metal gear train ensures durability under harsh situations
Slightly taller case design
Ideal for aircraft and some 1/8 off road car applications


Specifications:

Torque @ 4.8V: 13kg/cm
Torque @ 6V: 16kg/cm
Speed @ 4.8V: 0.20 sec/60 deg
Speed @ 6V: 0.18 sec/60 deg

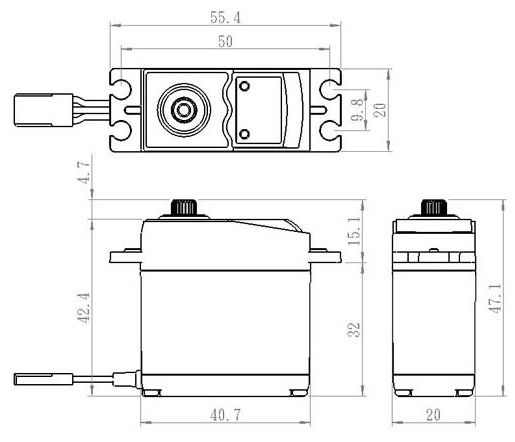

Dimensions L x W x H: 40.7 x 19.6 x 42.4mm
Weight: 61g


Technical Details:

Operating Temperature: -10° to 50°C
Running Current (no load): 300mA @4.8V, 350mA @6.0V
Stall Current (at locked): 2600mA @4.8V, 3200mA @6.0V
Idle Current: 5mA @4.8V, 6mA @6.0V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 120° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 164° (800 → 2200 µ second)
Refresh Rate: 240 Hz
Motor Type: Brushed
