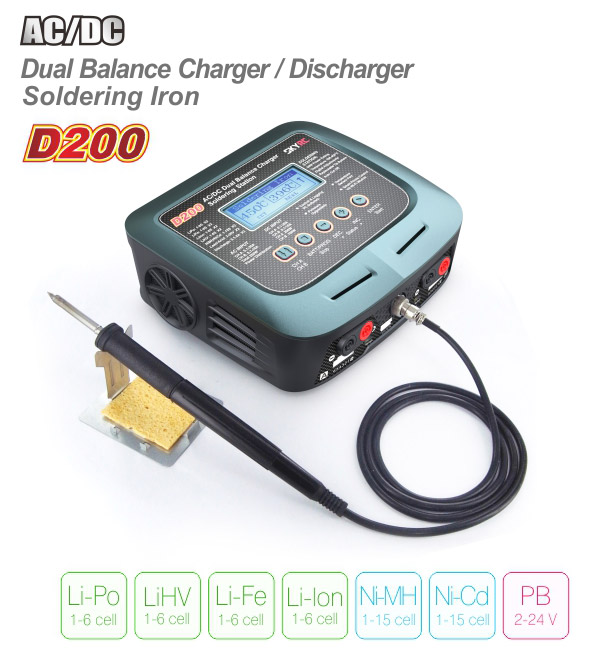

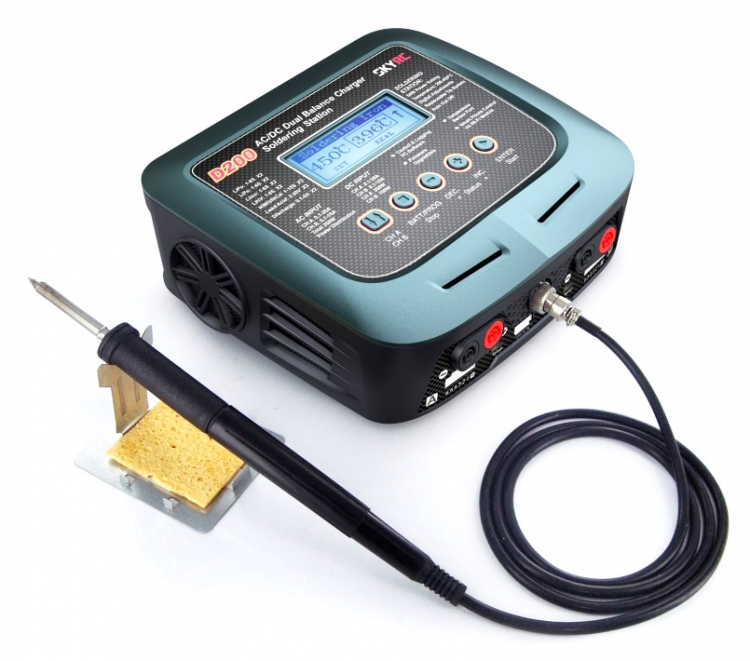

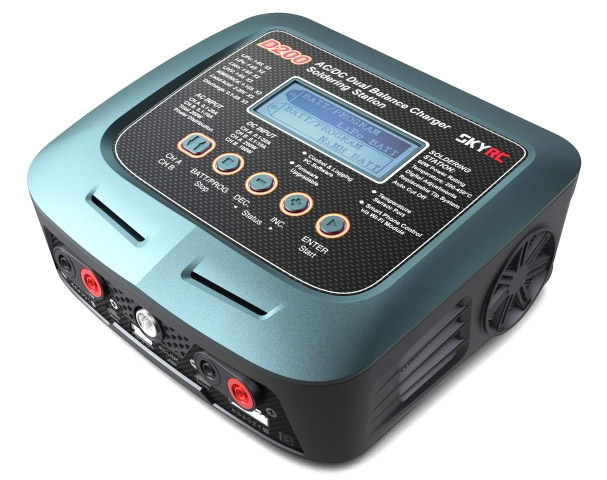

SKYRC D200 is a dual output charger, which supports power distribution with AC source. It has new functions, like, Terminal Voltage Control (TVC), Battery Meter, Battery Internal Resistance Meter. It has software protection, like, Current Limit, Capacity Limit, Temperature Threshold and Charging Time Limit.It supports PC control and firmware upgrade. Additionally,it has a built in soldering iron that can heat up to 450℃ with heavy duty 60W, the temperature is adjustable from 200-450℃.Features:Built-in soldering iron that can heat up to 450℃ with heavy duty 60WBuilt in cell voltage balancerCurrent LimitCapacity LimitTemperature ThresholdCharging time LimitUser can store 20 charge/discharge profiles which can be called out without any special program settingUser can check battery pack´s total voltage, and each cell´s voltageUser can check battery pack´s total internal resistance, and each cell´s internal resistanceUser can use ´Charge Master´ controlling and viewing real time data with graphs, also can update firmware with itUser can modify the end voltage (for expert only).Supports LiHV batteriesCharge Master PC SoftwareUser can monitor battery pack´s total voltage, individual cell voltage etc., and view real time data and graphs of related specs during charging/discharging. Also user can use ´Charge Master´ to update firmware.Download the SkyRC Charge Master PC Software - HERE
